Description
Auto Clean Room Panel Production Machine is a specialized design equipment used to manufacture clean room panels, which is a specialized building material used in the construction of clean rooms.This auto clean room panel production machine is composed of decoiler, clean room panel roll forming machine, glue machine, turn over machine, transport machine, hot pressing machine, auto stack, hydraulic system, PLC control system. Designed with clean room panel output quantity of 2400 square meters every 8 hours production, this auto clean room panel production line has the advantage of fast efficiency and easy operation.
Application
Clean room panel is a specialized building material used in the construction of clean rooms, which are controlled environments with low levels of airborne particles and contaminants. These panels are designed to meet the stringent requirements for cleanliness, air quality, temperature control, and particle filtration in industries like pharmaceuticals, biotechnology, electronics, and food manufacturing.
Clean room panels typically have the following characteristics:
1. Smooth, non-porous surface: this prevents dust, dirt, and contaminants from adhering to the surface, making it easier to maintain cleanliness.
2. Insulation: clean room panels often contain insulation materials like rock wool, mineral core, magnesium oxide board, aluminum honeycomb, etc for temperature control and to prevent condensation.
3. Durability: The outer surface of the clean room panels are made from strong, corrosion-resistant materials, such as stainless steel, galvanized steel, or specialized coated surfaces, to withstand rigorous cleaning and maintenance.
4. Sealed edges: the edges of clean room panels are often sealed to prevent the infiltration of particles or air leaks that could compromise the cleanliness of the room.
5. Fire-resistant properties: Many clean room panels are fire-rated to meet safety regulations.These panels are modular and can be easily assembled and disassembled, providing flexibility in designing and maintaining clean room spaces.
Working Process
Operation Flow:
5T Decoiler- Main Roll Forming – Glue Machine – Turn Over- Hot Pressing- Auto Stack
We are professional manufacturer of clean room panel machines focused on clean room industry for more than 30 years, in China, about 90% of the clean room panel manufacturers use our machines. The advantage of using our auto clean room panel machine include high efficiency ( that you just need set the product length and quantity on touch screen, then the machine will run automatically), consistent product quality, and the ability to produce long lengths of channel without joints. These characteristics are essential for the structural integrity and durability of clean room panel systems.
Technical Specification
| Auto Clean Room Panel Production Line | ||
| No. | Item | Specification |
| 1 | Suitable material | Galvanized Coil, PPGI, Stainless steel |
| Thickness(mm):0.4-0.8 | ||
| Yield strength: 250 – 550MPa | ||
| Tensil stress( Mpa):G350Mpa-G550Mpa | ||
| 2 | Nominal forming speed(m/min) | 0-15 |
| 3 | Forming station | 12 stations |
| 4 | Decoiler | Hydraulic decoiler |
| 5 | PLC brand | Mitsubishi |
| 6 | Inverter brand | Delta/ ABB |
| 7 | Driving system | By chain |
| 8 | Rollers’ material | Cr12 |
| 11 | Power supply | 380V 50Hz 3PH |
| 12 | Machine color | Industrial blue |
Q & A
1. Q: What kinds of experience do you have in producing auto clean room panel production line?
A: We have rich experience of producing auto clean room panel machines, till now more than 500 sets auto clean room panel production lines produced and sold to customers local China and all over the world.
2. Q: What is delivery time of auto clean room panel production line?
A: 65 days after contract confirmation.
3. Q: What is your machine production speed?
A: The machine output is 2400 square meters every 8 hours working.
4. Q: What is your after-sales service system?
A: We will send engineer to customer’s factory for machine installation and commissioning, if customer require. We provide whole life service, If there will be any quality problems caused by non-human factors, we will handle it immediately for you and we will be ready for you 7X24H. One purchase, lifetime care for you.

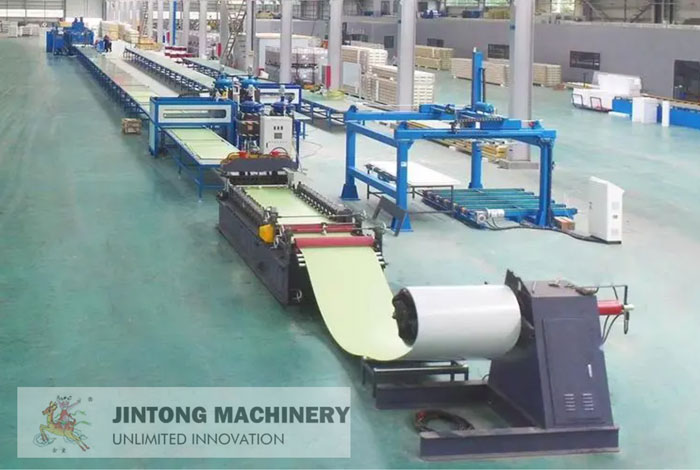

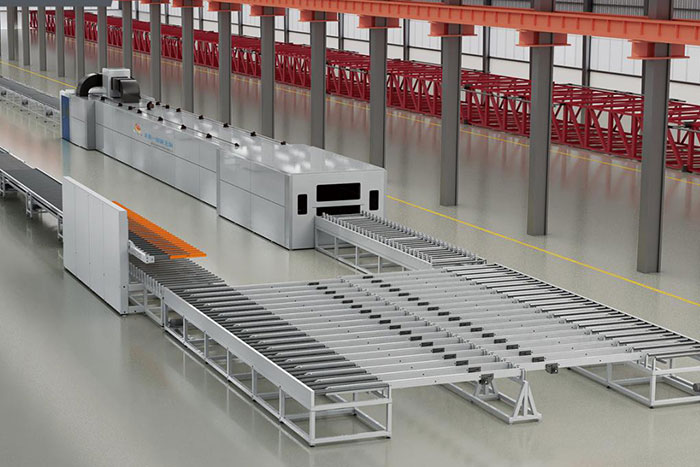

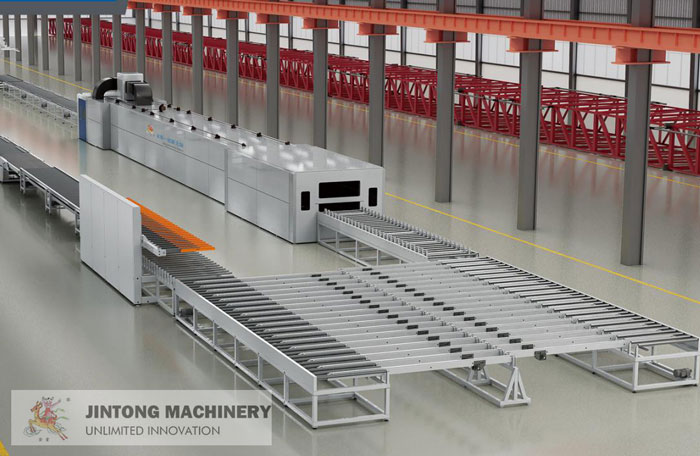

Machine Photo
