Description
Clean Room Panel Roll Forming Machine is a specialized design equipment used to manufacture clean room panels (also called clean room wall panels), which is a specialized building material used in the construction of clean rooms.This clean room panel roll forming machine is composed of decoiler, laminate device, hydraulic punch device, main forming machine, hydraulic cutting and bending machine, outer table, hydraulic system, PLC control system, etc. It can produce clean room panel width from 500mm to 1180mm. this auto clean room panel production line has the advantage of fast efficiency and easy operation.
Application

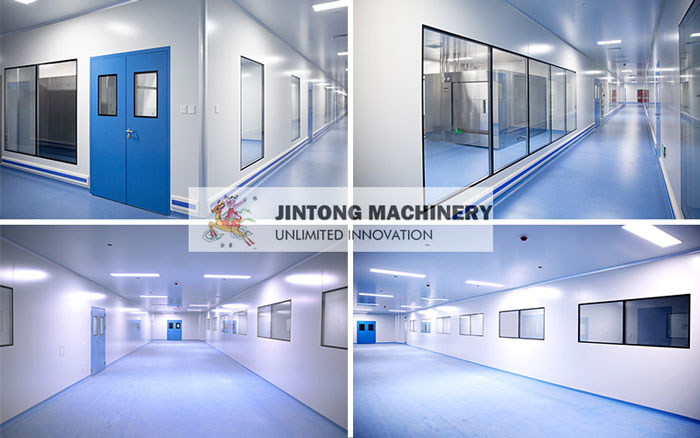

Clean room panel is a specialized building material used in the construction of clean rooms, which are controlled environments with low levels of airborne particles and contaminants. These panels are designed to meet the stringent requirements for cleanliness, air quality, temperature control, and particle filtration in industries like pharmaceuticals, biotechnology, electronics, and food manufacturing.
Clean room panels typically have the following characteristics:
1. Smooth, non-porous surface: this prevents dust, dirt, and contaminants from adhering to the surface, making it easier to maintain cleanliness.
2. Insulation: clean room panels often contain insulation materials like rock wool, mineral core, magnesium oxide board, aluminum honeycomb, etc for temperature control and to prevent condensation.
3. Durability: The outer surface of the clean room panels are made from strong, corrosion-resistant materials, such as stainless steel, galvanized steel, or specialized coated surfaces, to withstand rigorous cleaning and maintenance.
4. Sealed edges: the edges of clean room panels are often sealed to prevent the infiltration of particles or air leaks that could compromise the cleanliness of the room.
5. Fire-resistant properties: Many clean room panels are fire-rated to meet safety regulations.These panels are modular and can be easily assembled and disassembled, providing flexibility in designing and maintaining clean room spaces.
Working Process

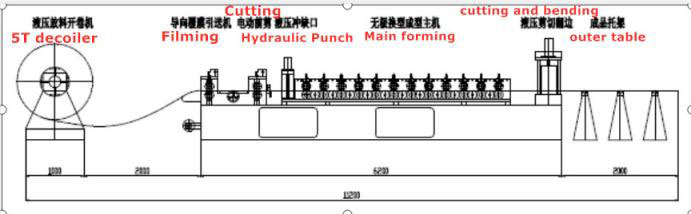

Operation Flow:
5T Decoiler- Laminate device- hydraulic punch device- main forming machine- hydraulic cutting and bending- outer table
We are professional manufacturer of clean room panel roll forming machines for more than 30 years, in China, about 90% of the clean room panel manufacturers use our machines. The advantage of using our auto clean room panel machine include high efficiency ( that you just need set the product length and quantity on touch screen, then the machine will run automatically), consistent product quality, and the ability to produce long lengths of channel without joints. These characteristics are essential for the structural integrity and durability of clean room panel systems.
Technical Specification
| Clean Room Panel Roll Forming Machine | ||
| No. | Item | Specification |
| 1 | Suitable material | Galvanized Coil, PPGI, Stainless steel |
| Thickness(mm):0.4-0.8 | ||
| Yield strength: 250 – 550MPa | ||
| Tensil stress( Mpa):G350Mpa-G550Mpa | ||
| 2 | Nominal forming speed(m/min) | 0-15 |
| 3 | Forming station | 12 stations |
| 4 | Decoiler | Hydraulic decoiler |
| 5 | PLC brand | Mitsubishi |
| 6 | Inverter brand | Delta/ ABB |
| 7 | Driving system | By chain |
| 8 | Rollers’ material | Cr12 |
| 11 | Power supply | 380V 50Hz 3PH |
| 12 | Machine color | Industrial blue |
Q & A
1. Q: What kinds of experience do you have in producing clean room panel roll forming machine ?
A: We have rich experience of producing clean room panel machines, till now more than 1000 sets clean room panel roll forming machines produced and sold to customers local China and all over the world.
2. Q: What is delivery time of clean room panel roll forming machine?
A: 60 days after contract confirmation.
3. Q: What is your machine production speed?
A: The machine output is 2400 square meters every 8 hours working.
4. Q: What is your after-sales service system?
A: We will send engineer to customer’s factory for machine installation and commissioning, if customer require. We provide whole life service, If there will be any quality problems caused by non-human factors, we will handle it immediately for you and we will be ready for you 7X24H. One purchase, lifetime care for you.

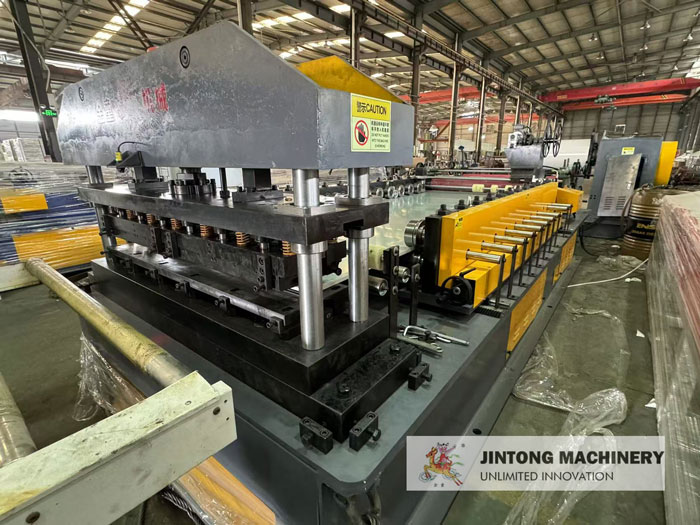

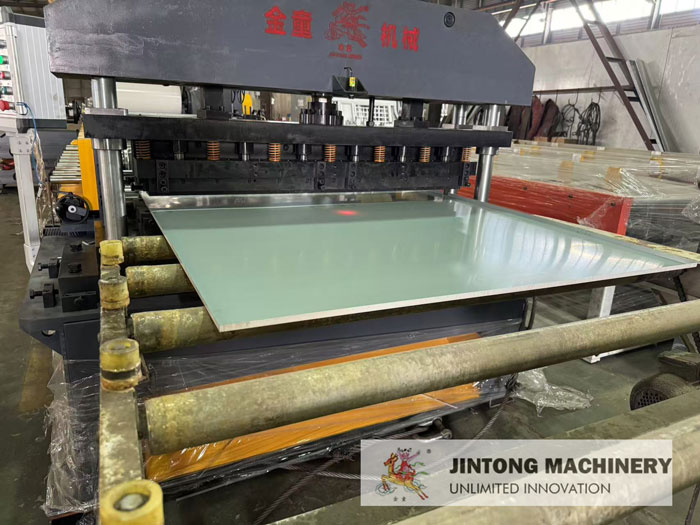

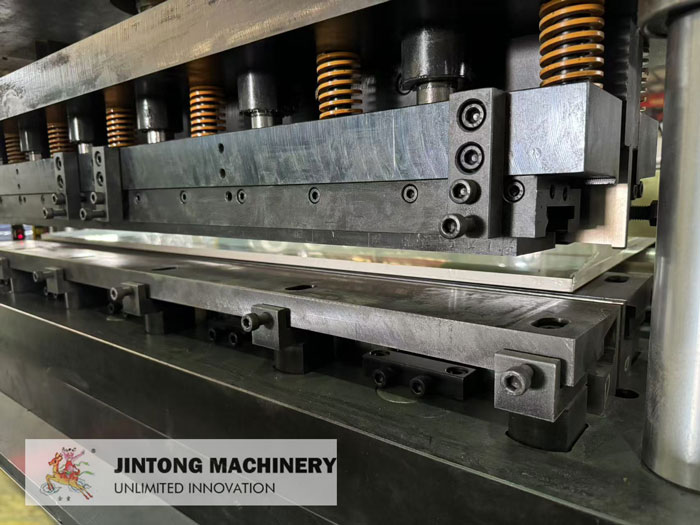

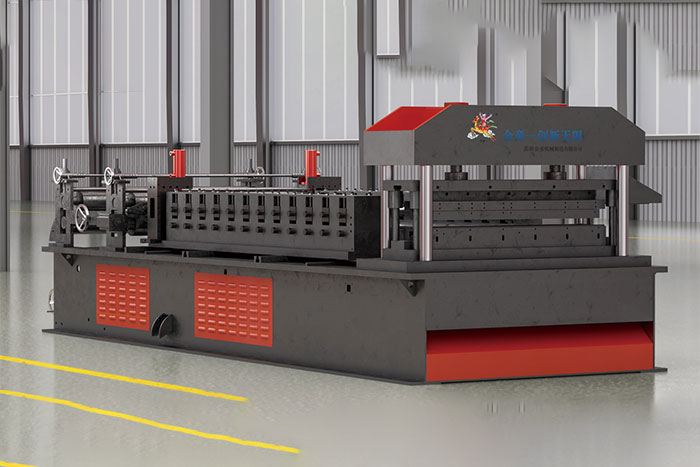

Machine Photo
